EM@3AM: Penile Fracture

Welcome to EM@3AM, an emDOCs series designed to foster your working knowledge by providing an expedited review of clinical basics. We’ll keep it short, while you keep that EM brain sharp.

Answer: Penile fracture; retrograde urethrogram

Pathophysiology:

• Penile fracture is a relatively uncommon urologic emergency that is due to the rupture of the tunica albuginea of one or both corpora cavernosa due to direct trauma of an erect penis²

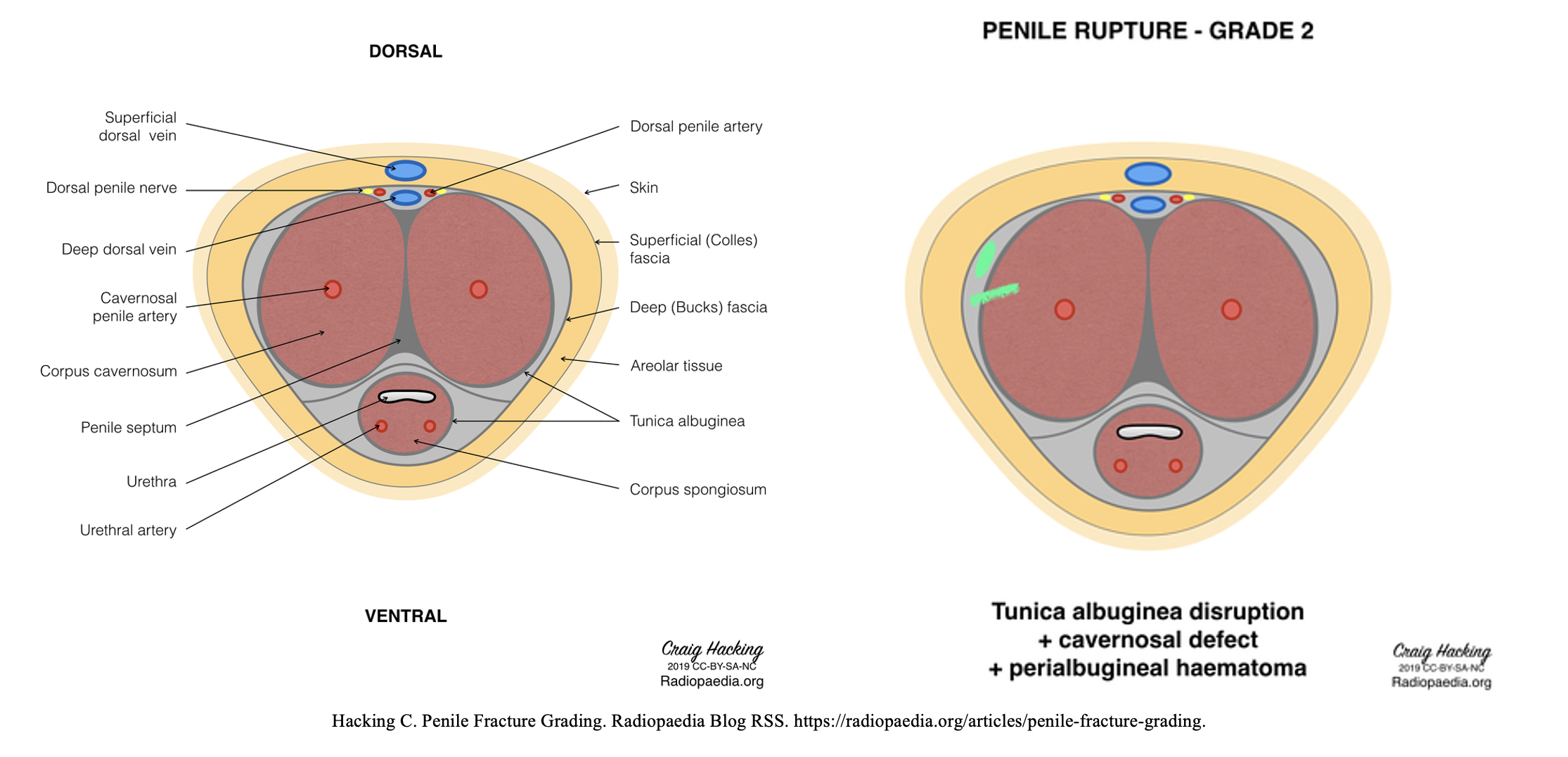

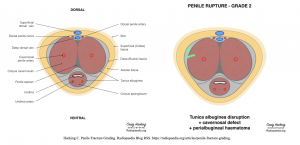

  • The tunica albuginea is connective tissue that encases the corpus cavernosum
  • In a flaccid state it is up to 2.4 mm thick but thins to 0.25-0.5 mm with an erection³
  • Force applied to an erect penis can cause this tissue to tear

• Most commonly occurs during sexual intercourse, but it can also be caused by aggressive bending to achieve rapid detumescence and stab or bullet wounds²
• Blood from the corpora cavernosa leaks into the surrounding tissues causing a hematoma deep to Buck’s fascia
• If Buck’s fascia is also ruptured, a hematoma can spread into the scrotum, perineum, and inguinal region, resulting in a “butterfly” sign³

Physical Exam:

• Patients classically present with sharp pain after hearing a cracking sound, followed by immediate flaccidity, swelling, and discoloration
  • “Eggplant deformity” or “aubergine sign” have been commonly used to describe the appearance of a fractured penis⁶
• The deformed penis will often be bent in the direction of the uninjured corpora cavernosa
• Urethral injuries can be present in up to 20% of patients⁶
  • Suspect with blood at the meatus, hematuria on urinalysis, and inability to void

Diagnosis:

• Clinical diagnosis based on exam and history; consult Urology specialist once suspected

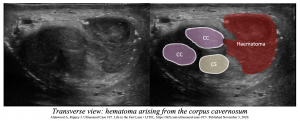

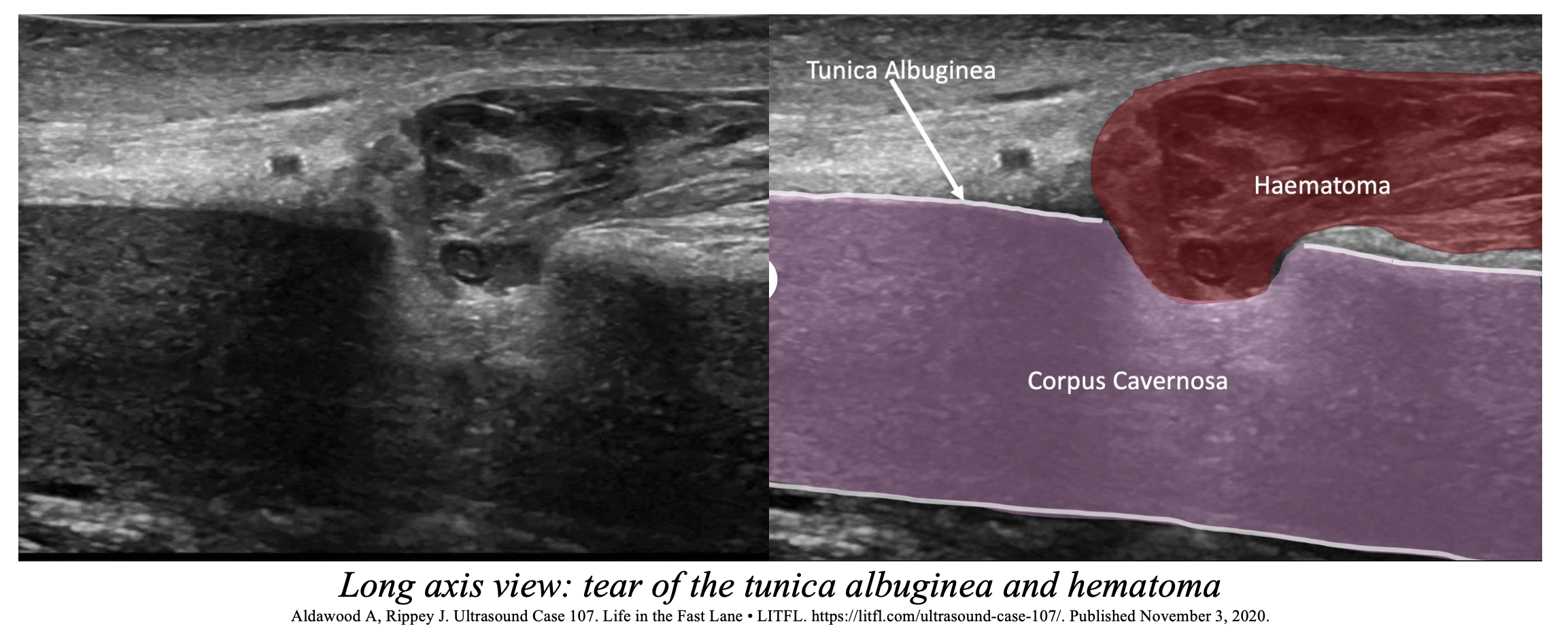

• Ultrasound (US) has a potential role in the diagnosis of suspected cases and for preoperative imaging
  • It can identify the exact location of the tear, which could potentially lead to a modified repair as opposed to complete degloving and blind exploration⁸
  • In one study, US detected a tear in 88% of patients, but was unable to detect any tears at the base of the penis⁸
  • In the same study, US mapping was compatible with surgical results in 72% of patients⁸
  • US can also be used to rule out other causes
    • Rupture or thrombosis of the dorsal vein can present similarly but immediate flaccidity and deformation are absent³
      • Use doppler to evaluate intact corporal arteries
      • Tunica albuginea will be intact
    • Intra-cavernosal hematomas will also demonstrate an intact tunica albuginea³
  • However, there are limited studies to validate using ultrasound⁹
  • US is operator-dependent, and the lack of tissue contrast and penis edema can be challenging⁹

• MRI can also be used; however, this is not readily available and should not delay care⁶

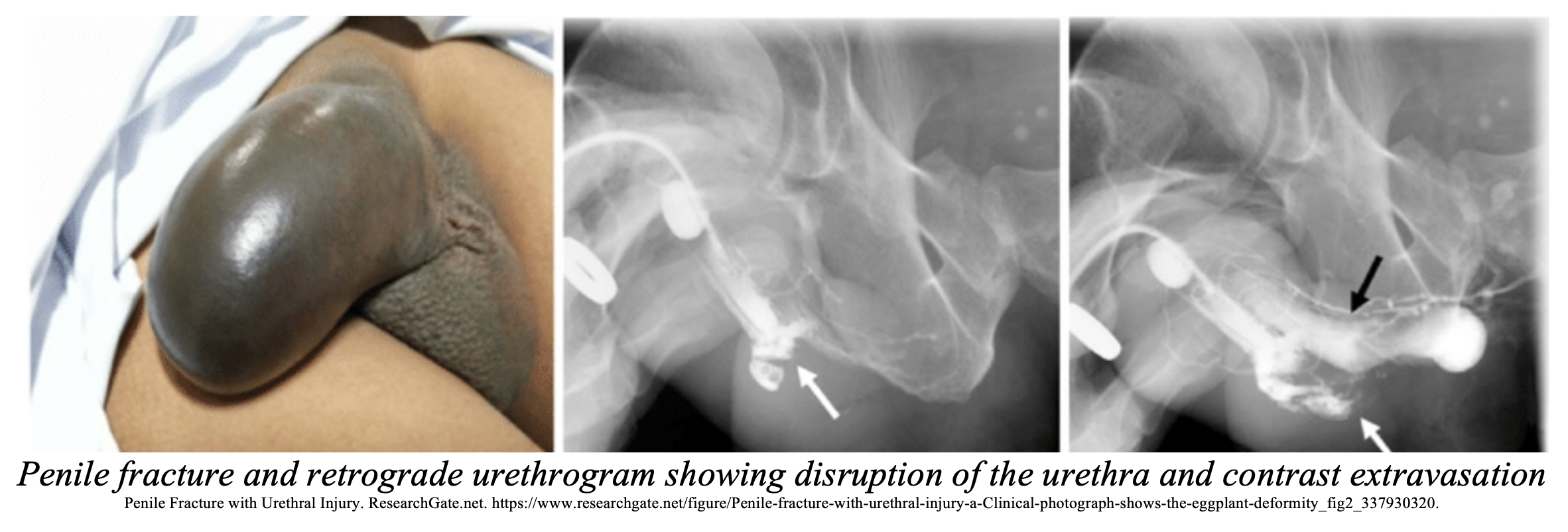

• If concern for urethral involvement is present, obtain a retrograde urethrogram

Management/Disposition:

• Consult Urology, as this warrants prompt surgical exploration and repair¹²
• Complications that can arise in the absence of appropriate treatment include persistent clot, erectile dysfunction, deformity, abscess, and fibrosis¹³
• Conservative management has a success rate of 59% compared with 92% for surgical treatment³
  • If this is the chosen management with urology consultation, it consists of pressure dressings, cold compresses, and NSAIDs¹³

Pearls:

• Clinical diagnosis in a patient with pain, ecchymosis, and swelling after hearing a cracking sound during intercourse or manipulation followed by immediate detumescence
• If inability to void, blood at the meatus, or hematuria, then obtain a retrograde urethrogram to evaluate for urethral injury
• US can identify rupture of tunica albuginea and evaluate for other causes
• Consult Urology, as surgical repair is standard treatment
