emDOCs Revamp: Left Ventricular Outflow Tract Obstruction

Authors: Rachel Bridwell, MD (EM Attending Physician; Tacoma, WA), Katey DG Osborne, MD (EM Attending Physician; Tacoma, WA) // Reviewed by: Alex Koyfman, MD (@EMHighAK, EM Attending Physician, UTSW / Parkland Memorial Hospital) and Brit Long, MD (@long_brit, EM Attending Physician, San Antonio, TX)

Welcome to emDOCs revamp! This series provides evidence-based updates to previous posts so you can stay current with what you need to know.

A 43-year-old male with a history of mitral valve regurgitation s/p valvular replacement, hypertension, hyperlipidemia was evaluated in the ED for septic shock secondary to a pyelonephritis with a renal abscess. He was started appropriately on vancomycin and cefepime and accepted for ICU admission but remains in the ED due to boarding and bed lock. He has clinically deteriorated and required intubation. Despite increasing doses of 30 mcg/min norepinephrine, 0.04U/min vasopressin, 100 mg hydrocortisone, and 10 mcg/kg/min of dobutamine, the patient is becoming increasing hypotensive.

VS: BP 81/44 mmHg, HR 38 bpm, T 101.2°F esophageal, RR 14 bpm, SpO2 98% on 40% FiO2.

General: Intubated sedated

CV: Tachycardic, regular rhythm, systolic murmur

Pulm: Clear to auscultation bilaterally

Skin: Mottled and cool

Neuro: GCS 3T

What is the underlying this patient’s vasopressor and inotrope refractory shock?

Answer: Left Ventricular Outflow Tract Obstruction (LVOTO)^1-17

Underlying Principles

• LVOTO occurs secondary to the systolic anterior motion (SAM) of the mitral valve (MV)
  • Blood velocity increases due to narrowed LV outflow, forcing outflow tract and mitral valve in closer proximity¹
    • Venturi effect causes the mitral valve to lift anteriorly towards increased velocity of blood flow²
      • Causes physical obstruction of outflow³
    • SAM of the MV additionally generates mitral regurgitation, increasing left atrial pressures and in turn, resulting in cardiogenic pulmonary edema³

Contributing Factors

• Physiologic:
  • Dormant LVOTO—subset of patients have an amount of outflow tract obstruction without effect until pathophysiologically provoked⁴
    • g. hyperdynamic contractility, reduced preload and/or afterload, inotropes, tachycardia⁴
  • Anatomic
    • Floppy mitral valve¹
    • Decreased left ventricular volume, especially secondary to septal hypertrophy⁵

Phenotypes of presentation

• Apical hypokinesis in the setting of Left Anterior Descending coronary artery occlusion^4,5
• Volume depletion with distributive shock⁴
  • Present in up to 2% of septic patients⁶
• Takotsubo cardiomyopathy^7,8
• Hypertensive cardiomyopathy⁹
• Hypertrophic obstructive cardiomyopathy⁵
• Cor pulmonale¹⁰

Clinical Presentation

• These patients are critically ill.
• Vital signs:
  • Hypotensive and tachycardic, despite escalating vasopressor and inotropic requirements¹¹
  • Hypoxia and respiratory distress – due to pulmonary edema
  • Cardiac arrest¹²
• Cardiogenic pulmonary edema¹³
  • Refractory or exacerbated by diuresis¹³
• Cardiogenic shock¹³
  • Refractory or exacerbated by inotropes and any vasopressor with beta activity¹³
• May appreciate new end systolic murmur on auscultation¹¹

Evaluation

• Chest Radiograph
  • Non-specific but may show pulmonary edema
• ECG
  • Non-specific – Tachycardia
  • Evaluate for anterior ST elevation myocardial infarction (STEMI)
  • If associated with HCM:
    • High voltages, “dagger-like” Q waves
  • Echocardiography^4,11,14
    • Assess LV size^4,11,14

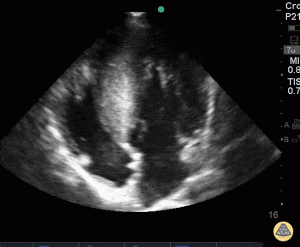

      • Hypertrophy especially at septum with resulting obstruction and decreased LV size:

        Courtesy of POCUS Atlas: https://www.thepocusatlas.com/pediatrics-1/3gcr6yneuyx87qxkx71bgsnkywqmi1
    •  Apical hypokinesis with basal hyperkinesis causing functional obstruction
      • Look for a hyperdynamic LV with a very small ventricular cavity during systole
    • SAM

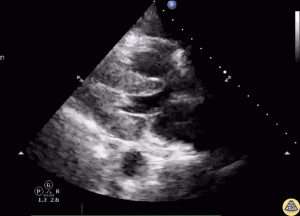

    • Poor LV filling and outflow obstruction in sepsis on vasopressors and inotropes with LVOTO:

      Courtesy of Pocus Atlas: https://www.thepocusatlas.com/valvulopathy/left-ventricular-outflow-tract-obstruction
    •  Mitral regurgitation (may be secondary to SAM)

      Courtesy of POCUS Atlas: https://www.thepocusatlas.com/valvulopathy/voxh2mkf0tal26fvdya3qgmq0go7ey
    • Doppler^4,14
      • High-velocity, late-peaking continuous-wave Doppler through LV with classic dagger shape⁴

      • Maximal LVOT pressure gradient:
        • > 30 mm Hg (2.7 m/s)—problematic and elevated
        • > 50 mm Hg (2.5 m/s)—severely elevated
  •  Labs
    • May acquire ECG, complete blood count, comprehensive metabolic panel, troponin, beta natriuretic peptide
      • May demonstrate evidence of heart failure, acute renal failure, shock liver, or other evidence of end organ damage, though does not change management

Treatment:

• Medications/interventions to stop/avoid:
  • Inotropes^4,15
  • Afterload reduction^4,15
  • Intra-aortic balloon pump (in discussion with cardiology)
• Administer judicious fluids to increase preload
• Pure vasoconstriction without beta agonism
  • Phenylephrine—convenient and short half-life¹⁵
    • Directly treats vasoplegia associated with sepsis⁶
  • Vasopressin⁶
  • Please avoid norepinephrine and epinephrine due to beta agonism¹⁶
• Beta blockade: decreases LVOTO with increased filling time and mitigates hyperdynamic LV¹⁷
  • Esmolol — for careful titration and short half-life¹⁷

Disposition:

• Admit to ICU
• Formal echocardiography
  • Quantification of LVOT pressure gradient

Pearls:

• Similar to LVOTO will have the opposite expected physiologic result in response to medications given.
  • Suspect in patients with shock refractory or worsened by vasopressors and inotropes
    • Additionally, consider in cardiogenic shock worsening by diuresis
  • Systolic anterior mitral valve motion both impairs left ventricular outflow and causes mitral regurgitation.
  • Occurs secondary to a various of anatomic and pathophysiologic conditions including:
  •         Distributive shock with volume depletion
    • Cor pulmonale
    • Hypertrophic obstructive cardiomyopathy
    • Hypertensive cardiomyopathy
    • LAD occlusion with apical hypokinesis
    • Takotsubo cardiomyopathy
  • To correct the outflow obstruction, increase the size and filling time of the left ventricle:
    • Stop inotropes and diuretics
    • Judicious volume resuscitation
    • Increase the systemic vascular resistance with phenylephrine and/or vasopressin
    • Rate control with beta blockade using esmolol
  • Admit these patients to the ICU
